ELB030BW
Height: 3.3m
Floodlights: 300W LED Balloon
Mast: Telescopic System (with Air-Assisted)

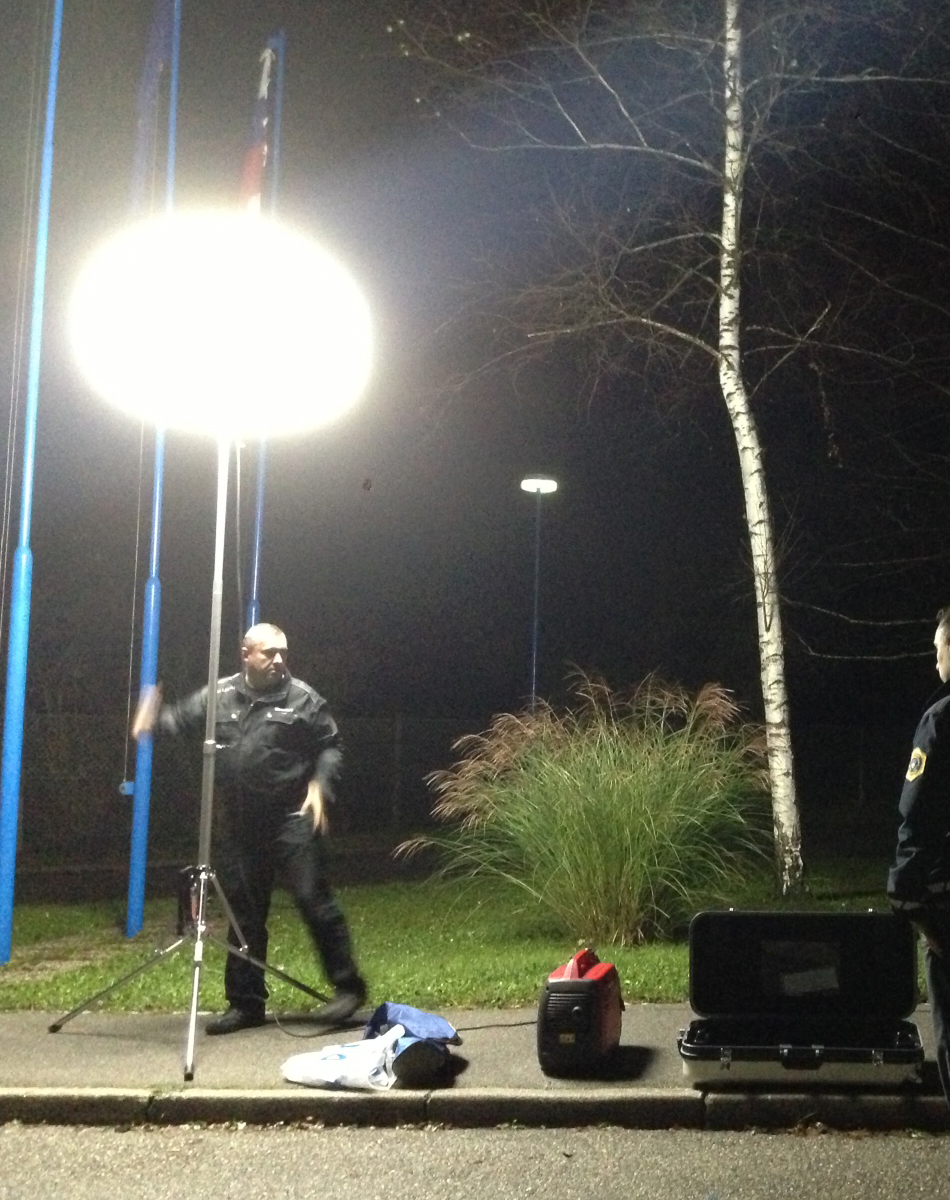

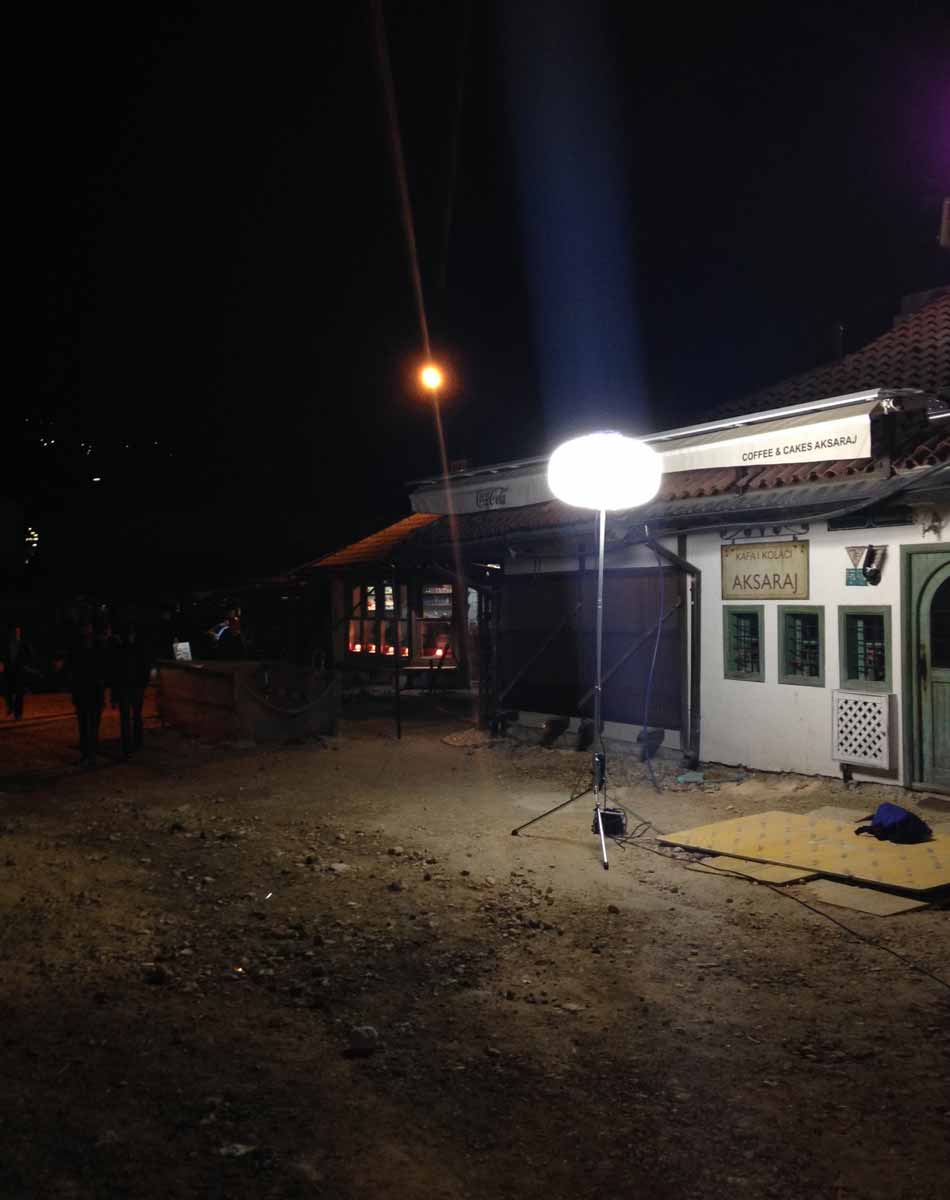

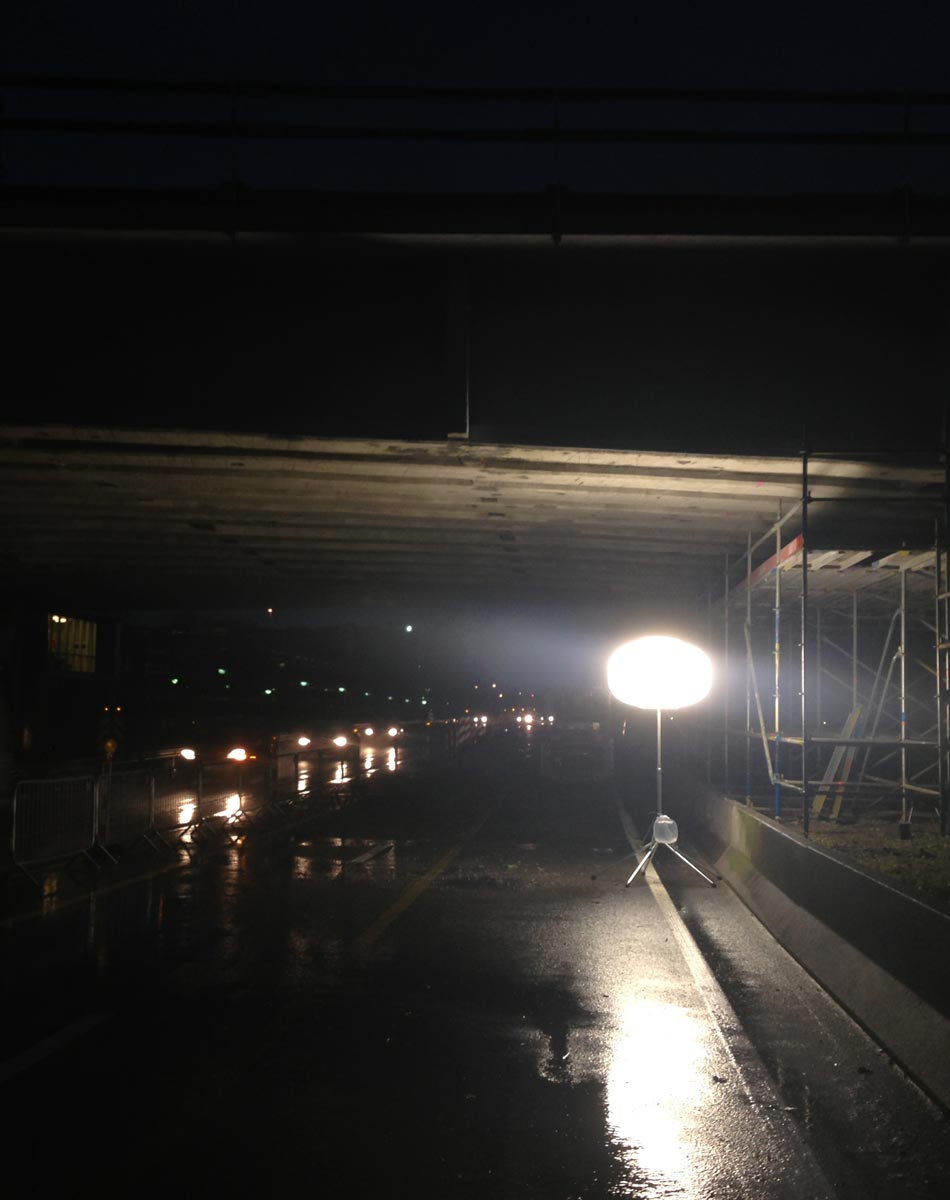

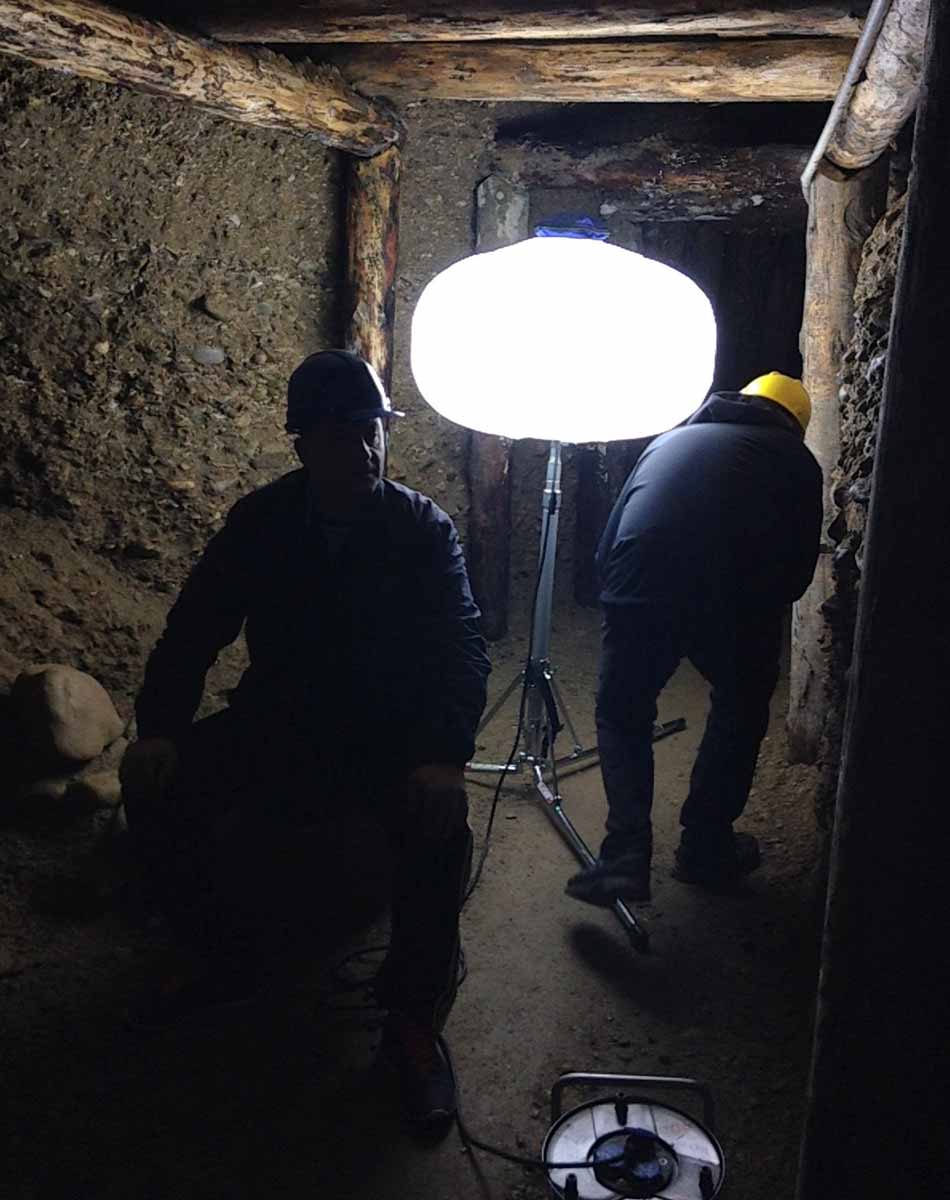

LIGHT BOY offers exceptional LED technology to our line of GELBs. LED lighting is safer, producing significantly less heat than Metal Halide bulbs while offering quality color consistency, immediate strike/re-strike operations, and a long operational life. The ELB030BW comes standard with an air-assisted, telescopic 3-stage pentapod stand. With its powerful 300W LED system, and 3-position dimmer design, this unit provides optimum glare-free lighting to a host of construction, quick response, and special event applications.
The ELB030BW sets up in minutes, and is easily transported and stored in two supportive heavy vinyl carrying bags.
LIGHT BOY LED LIGHTING SYSTEM
Quick and Easy Set-Up
3 legs are deployed by operating one lever. Easy and very simple set-up and store.
Air-Assisted Mast
Air-Assisted Mast prevents sudden descent. This system protects LED lamps.
Compact
When space is limited but illumination is required, ELB030BW is the only choice.
Balloon Cover
Balloon Cover is attached to the balloon structure, protecting from dust in the air.
LED Lamp Guard
Our LED lamp guard is made of polycarbonate with a level of durability the same as a riot shield.
Three Stage Dimming Control
Push the Dimming Control Button and the power will change accordingly. You can save the energy depending on your applications.
Specification
| Model | ELB030BW | ||
| Voltage (V) | AC90~240 | ||
| Frequency (Hz) | 50/60 | ||
| Current (A) | 1.4 (AC230V, 300W) | ||
| Lamp | Type | LED | |
| Dimming Control | 3 Stage Dimming : 300W/200W/100W | ||
| Total Luminous Flux (lm) | 40,000/30,000/16,000 | ||
| Temperature (℃) | -10~40 | ||
| Mast | Mast | Telescopic System | |
| Mast Operation | Hand Operation | ||
| Dimension | 1st Level (L×W×H) (mm) | 1330×1575×1620~2950 | |
| 2nd Level (L×W×H) (mm) | 1135×1325×2005~3335 | ||
| Storage (L×W×H) (mm) | Balloon | 200×220×600 | |
| Pentapod | 190×190×1015 | ||
| Carry Case | 220×220×1120 | ||
| Weight | Balloon (kg) | 9.2 | |
| Tripod (kg) | 7.7 | ||
| Carry Case (kg) | 0.7 | ||
| Total Weight (kg) | 17.6 | ||
| Appropriate Generator | 350W and above | ||
